Engine/Transmission Mount Overview

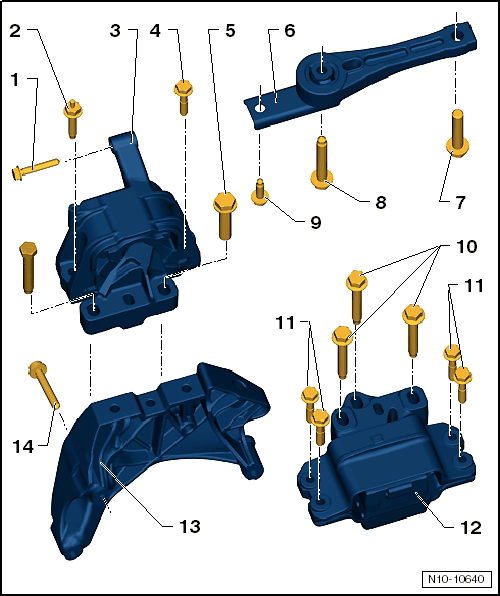

Fig 1: Identifying Assembly Overview: Engine And Transmission Mount
GWWN10-10640Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 20 Nm + an additional 90° (1/4) turn.
    • Always replace.
  2. Bolt
    • 40 Nm + an additional 90° (1/4) turn.
    • Always replace.
    • Engine mount to body.
  3. Engine Mount
  4. Bolt
    • 40 Nm + an additional 90° (1/4) turn.
    • Always replace.
    • Engine mount to body.
  5. Bolt
    • 60 Nm + an additional 90° (1/4) turn.
    • Always replace.
    • Engine mount to engine mount bracket.
  6. Pendulum Support
  7. Bolt
    • 100 Nm + an additional 90° (1/4) turn.
    • Always replace.
    • First, secure the pendulum support to the transmission and then to the subframe.
    • Pendulum support to subframe.
  8. Bolt
    • Tightening specification, refer to SPECIAL TOOLS .
    • Pendulum support to transmission.
  9. Bolt
    • Tightening specification, refer to SPECIAL TOOLS .
    • Pendulum support to transmission.
  10. Bolt
    • 60 Nm + an additional 90° (1/4) turn.
    • Always replace.
    • Transmission mount bracket to transmission.
  11. Bolt
    • 40 Nm + an additional 90° (1/4) turn.
    • Always replace.
    • Transmission mount to body.
  12. Transmission Mount
    • The figure shows a Direct Shift Gearbox version, this is not available in the USA/Canada market.
  13. Engine Mount Bracket
  14. Bolts
    • 40 Nm + an additional 180° (1/2) turn.
    • Always replace.
    • Engine mount bracket to engine.
