Overview - Central Locking

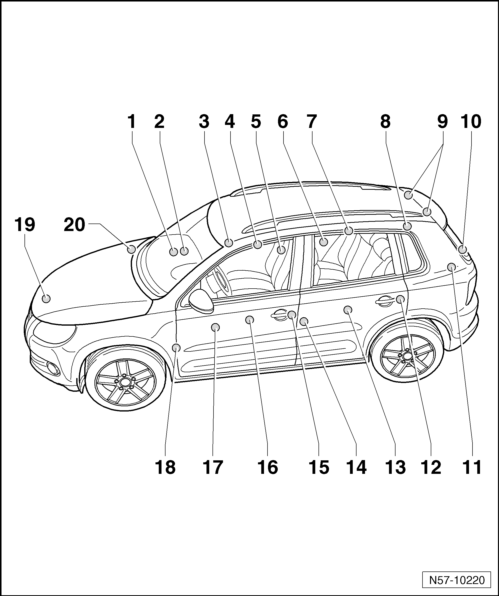

Fig 1: Identifying Central Locking Component

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Comfort System Central Control Module -J393-
- Installed location: under the instrument panel on the front passenger side
- Remove the Comfort System Central Control Module .
Connector Station
- Installed location: Right A-pillar.
- To disconnect harness connector, release bellows at pillar, refer to FRONT DOOR
Front Passenger Door Control Module -J387-
- Integrated in window regulator motor.
- Removing, refer to FRONT DOOR WINDOW REGULATOR, REMOVING AND INSTALLING .
Front Passenger Door Central Locking Lock Unit -F221-
- Door lock is secured to subframe.
- Electrical central locking system is integrated in door lock.
- Removing, refer to DOOR LOCK .
Connector Station
- Installed location: Right B-pillar
- To disconnect harness connector, release bellows at pillar
Right Rear Door Control Module -J 389-
- Integrated in window regulator motor.
- Removing, refer to REAR DOOR WINDOW REGULATOR .
Right Rear Door Locks -F 223-
- Door lock is secured to subframe.
- Electrical central locking system is integrated in door lock.
- Removing, refer to REAR DOOR LOCK
Fuel Tank Lid Lock Motor -V155-
- Installed location: on the fuel filler door unit
Rear Lid Connector Station
- Installed location: behind the luggage compartment trim panel on the left side
- Remove the Rear Lid Connector Station.
Rear Lid Handle Unlock Switch -E234-
Rear Lid Lock
- Installed location: attached to the rear lid
- Removing and installing, refer to REAR LID LATCH .
Left Rear Central Locking Lock Unit -F222-
- Door lock is secured to subframe.
- Electrical central locking system is integrated in door lock.
- Removing, refer to REAR DOOR LOCK .
Left Rear Door Control Module
- Integrated in window regulator motor.
- Removing, refer to REAR DOOR WINDOW REGULATOR .
Connector Station
- Installed location: Left B-pillar
- To disconnect harness connector, release bellows at pillar
Driver Door Central Locking Lock Unit -F220-
- Door lock is secured to subframe.
- Electrical central locking system is integrated in door lock.
- Removing, refer to DOOR LOCK .
Driver Door Control Module -J386-
- Integrated in window regulator motor.
- Removing, refer to FRONT DOOR WINDOW REGULATOR, REMOVING AND INSTALLING .
Central Window Regulator Switch (in Driver's Door) -E189-
- Installed location: inside the door trim panel
- Window Regulator Central Switch, Removing and Installing, refer to [For transmission(s) 0A6, 09M] Electromechanical Parking Brake Button E538 and -AUTO HOLD- Button E540 .
Connector Station
- Installed location: Left A-pillar
- To disconnect harness connector, release bellows at pillar, refer to FRONT DOOR
Front Hood Switch -F266-
- Contact Switch. .
- Installed location: on the latch
- Hood Latch, Removing and Installing, refer to HOOD LATCH .
Alarm Horn -H12-
- Installed location: in the plenum chamber
- Removing, refer to Interior Lights, Switches .
