Test Step 4 - Liftgate Switch Sense Circuit Open
- Turn the ignition OFF.

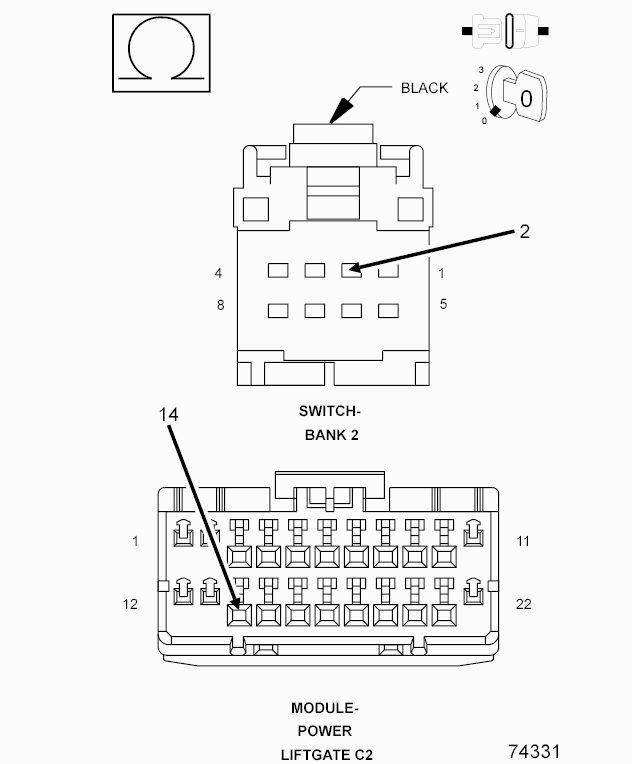

- Measure the resistance of the liftgate switch sense circuit between the switch connector and the power liftgate C2 harness connector.
Is the resistance less than 2.0 ohms?
No
- Repair the liftgate switch sense circuit for an open.
- Perform the Body Verification Test. Refer to BODY VERIFICATION TEST .
Yes
- Replace the power liftgate module. Refer to POWER LIFTGATE CONTROL MODULE .
- Perform the Body Verification Test. Refer to BODY VERIFICATION TEST .
