Bevel Box: Removing

Proceed as follows when removing the bevel box:

Remove the noise insulation. Refer to NOISE INSULATION OVERVIEW .

To achieve more accessibility in vehicles with auxiliary heating, remove auxiliary heater coolant hoses -1- and -2- from engine and vehicle body. While doing this do not open the hoses in the system. Refer to the appropriate Service Information

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove the heat shield above the right drive axle -arrows-.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove the right drive axle. Refer to REMOVAL AND INSTALLATION .

Mark the position of the driveshaft with the flexible disk with respect to the bevel gear flange with paint.

Remove the driveshaft from the bevel box -arrows-.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Push the front driveshaft tube all the way back.

Place a cloth on the subframe to prevent damaging the paint on the driveshaft.

Lay the driveshaft on the subframe.

Remove the bracket from the exhaust system -arrows- and the subframe.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove the pendulum support from the transmission, bolts -1- and -2-.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

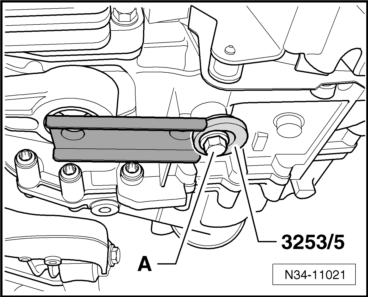

Push the engine/transmission to the front end, while doing so support with the pendulum support as shown.

Use the bolt -A- = M10 x 35 collar bolt

Courtesy of VOLKSWAGEN UNITED STATES, INC.

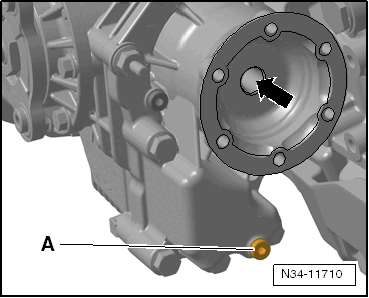

Remove the bolts for the right flange shaft -arrow- using the socket. Insert two bolts in the flange and counterhold the flange shaft with the pry lever.

Ignore bolt -A-.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove the bolt -1- and -2- for the transmission support on the engine from and transmission.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

The illustration of the bolt head can vary from the original.

Remove the transmission support.

Remove the bolts -arrows- for the bevel box on the upper part of the transmission.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove the bolts -arrows- for the bevel box on the lower part of the transmission.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Carefully push the bevel box off the transmission and remove it.
