Special Tools

Special tools and workshop equipment required

• Hose Clamps up to 40 mm 3093
• Shackle 10-222 A/12
  Fig 1: Identifying Shackle 10 - 222 A/12

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Crankshaft Adapter T03003
  Fig 2: Identifying Crankshaft Adapter T03003

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Socket SW 15V/175
  Fig 3: Identifying Special Tool -- Socket Insert SW 15V/175

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clamps up to 25 mm Dia. 3094
  Fig 4: Identifying Hose Clamps 3094

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Torque Wrench (40-200 Nm) V.A.G 1332
  Fig 5: Identifying Torque Wrench 40-200 Nm VAG 1332

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

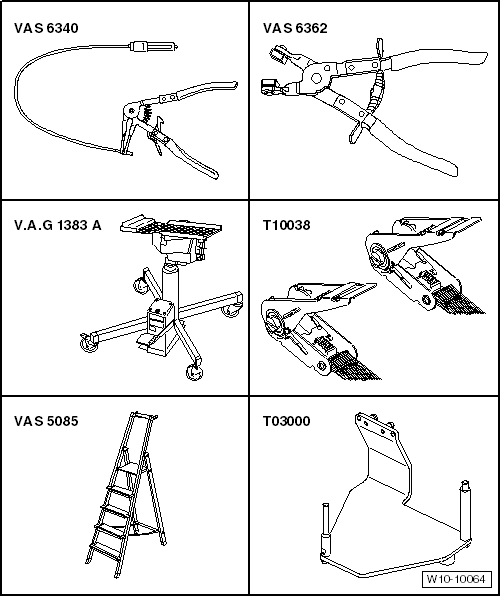

Fig 6: Identifying Special Service Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Hose Clip Pliers VAS 6340
• Hose Clip Pliers VAS 6362
• Engine-/Gearbox Jack V.A.G 1383 A
• Tensioning Strap T10038
• Step Ladder VAS 5085
• Engine Holder Bracket T03000

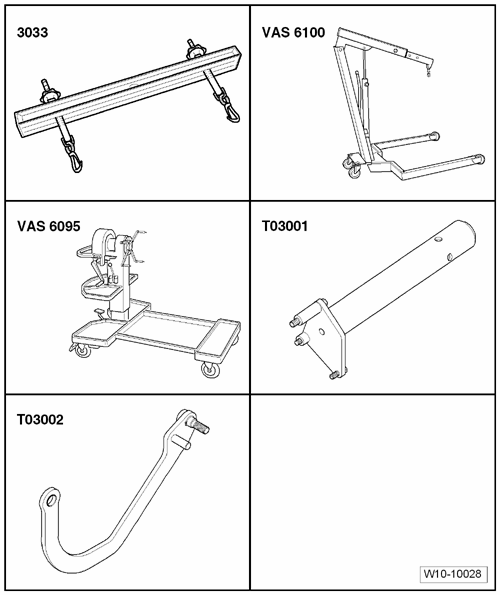

Fig 7: Identifying Special Tools -- Engine, Securing To Assembly Stand

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Lifting Tackle 3033
• Shop Crane - Load Cap = 700-1200 KG VAS 6100
• Engine and Transmission Holder VAS 6095
• Engine Lateral Bracket T03001
• Transport Arm T03002
