Speaker Overview
NOTE:
Together with the "RCD 310" radio and the "RNS 315" radio, the front sound system has a 2-way system with one bass speaker, one mid-range and one treble speaker in both front doors. In vehicle rear, an optional 2-way system with one bass speaker and one treble speaker respectively can be installed in each door. The "Dynaudio" sound system amplifier has stronger speakers.
Together with the "Premium 8" radio and the "RNS 510" radio, the front sound system has a 2-way system with one bass speaker, one mid-range and one treble speaker in both front doors. Each rear doors has a 2-way system with a bass speaker and a treble speaker. The "Dynaudio" sound system amplifier has stronger speakers.
All speakers are passive speakers.

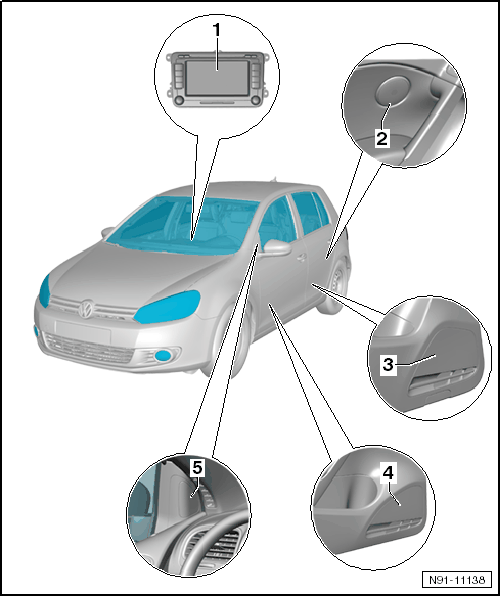

- Radio/Navigation Display Unit Control Module -J503- or Radio -R-
- Removing and installing, refer to RADIO UNITS AND RADIO NAVIGATION .
- Right Rear Treble Speaker -R16- and Left Rear Treble Speaker -R14-
- Installed in the side trim panels at the rear on the left and right sides.
- Removing and installing, refer to TREBLE SPEAKERS, REAR .
- Right Rear Bass Speaker -R17- and Left Rear Bass Speaker -R15-
- Installed in the side trim panels at the rear on the left and right sides.
- Removing and installing, refer to BASS SPEAKERS, REAR .
- Right Front Bass Speaker -R23- and Left Front Bass Speaker -R21-
- Installed in the left and right doors.
- Midrange frequencies play through the bass and treble speakers.
- Removing and installing, refer to BASS SPEAKERS, FRONT .
- Right Front Treble Speaker -R22- and Left Front Treble Speaker -R20-
- Installed in the left and right doors.
- Removing and installing, refer to TREBLE SPEAKERS, FRONT .
