Inner Window Shaft Strip

NOTE:

Pull the strip off evenly without bending it.

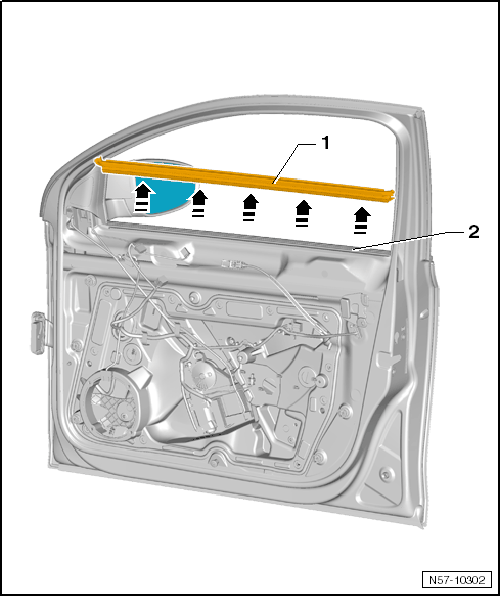

Fig 1: Identifying Removal Of Inner Window Shaft Strip

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

-- Remove front door trim. Refer to Removal and Installation .

-- Pull the seal -1- -arrows- evenly off the flange -2-.

Installation

Press the seal -1- evenly onto the flange -2-.
