Insulation Overview, 2-Door Vehicle

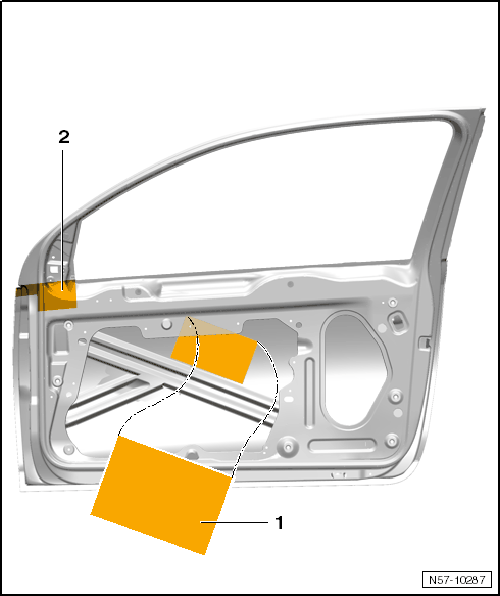

Fig 1: Identifying Insulation Overview, 2-Door Vehicle
GWWN57-10287Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Insulation
    • Self-adhesive
    • Installing:

      -- Cut if necessary and mount it over the side impact protection.

      -- Heat using a V.A.G 1416 and press onto the outer door panel.

  2. Foam Piece
