Rcd 310 Radio System: Overview

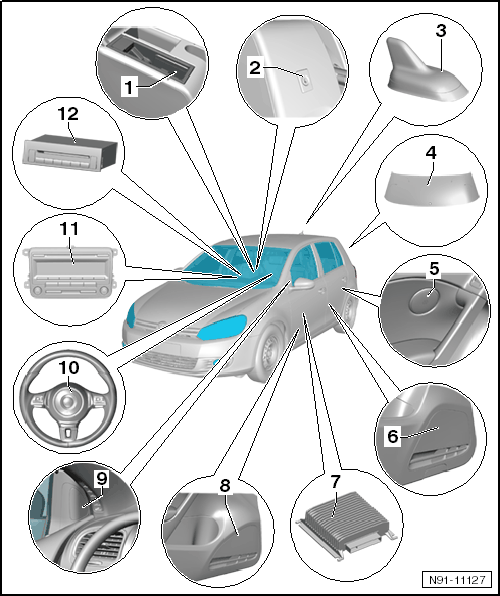

Fig 1: Identifying RCD 310 Radio System Component Locations

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Multimedia Control Module -J650-
- Installed in the storage compartment in the center armrest.
- For additional information, see multi media system control module. Refer to MULTIMEDIA CONTROL MODULE -J650- .
- Optional installation of CD changer or "multimedia system control module". The two systems cannot be installed together because the installation location is the same for both.
External Audio Source Connection -R199-
- Installed in the storage compartment in the center armrest.
- Additional information can be found in the External Audio Source Connection -R199- see EXTERNAL AUDIO SOURCE CONNECTION .
Antenna For The Telephone, Navigation and Auxiliary Heater Remote Control -R66-
- Installed on rear of roof.
- Installed only if, in addition to the radio, a telephone or auxiliary heater is installed at the factory.
- For additional information, refer to SOUND SYSTEM AMPLIFIER .
Rear Window Antenna 1 -R130-
Right Rear Treble Speaker -R16- and Left Rear Treble Speaker -R14-
- Installed in the side trim panels at the rear on the left and right sides.
- For additional information, refer to SPEAKER OVERVIEW .
Right Rear Bass Speaker -R17- and Left Rear Bass Speaker -R15-
- Installed in the side trim panels at the rear on the left and right sides.
- For additional information, refer to SPEAKER OVERVIEW .
Digital Sound System Control Module -R12-
- Installed under left front seat.
- For additional information, refer to SOUND SYSTEM AMPLIFIER .
Right Front Bass Speaker -R23- and Left Front Bass Speaker -R21-
- Installed in the left and right doors.
- Midrange frequencies play through the bass and treble speakers.
- For additional information, refer to SPEAKER OVERVIEW .
Right Front Treble Speaker -R22- and Left Front Treble Speaker -R20-
- Installed in the left and right doors.
- For additional information, refer to SPEAKER OVERVIEW .
Left Multifunction Buttons On Steering Wheel -E440- and Right Multifunction Buttons On Steering Wheel -E441-
- Additional information on multifunction steering wheel. Refer to MULTIFUNCTION STEERING WHEEL .
Radio -R- (RCD 310)
- Removing and installing, refer to RADIO UNITS AND RADIO NAVIGATION .
- Overview of harness connectors, refer to CONNECTORS OVERVIEW .
- Electronic Antitheft System, refer to RCD 310 SOUND SYSTEM, ELECTRONIC ANTITHEFT SYSTEM .
CD Changer -R41-
- 6-disc CD changer.
- Installed in the storage compartment in the center armrest.
- Additional information on CD changer, refer to CD CHANGER .
- Optional installation of CD changer or multimedia system control module. The two systems cannot be installed together because the installation location is the same for both.
