RNS 315 Radio Navigation System: Overview

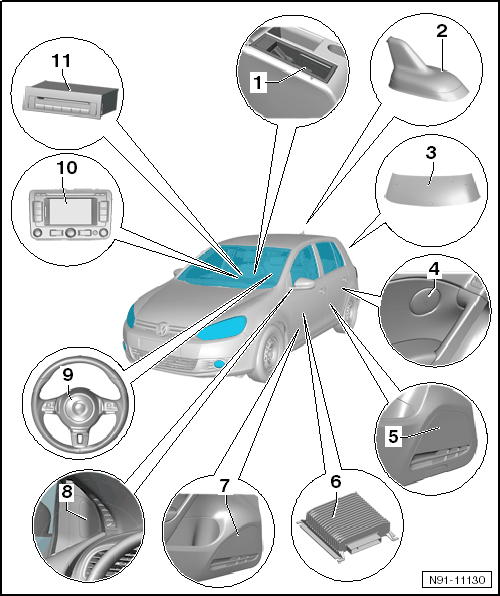

Fig 1: Identifying RNS 315 Radio Navigation System Component Locations

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Multimedia Control Module -J650-
- Installed in the storage compartment in the center armrest.
- For additional information, refer to MULTIMEDIA CONTROL MODULE -J650- .
- Optional installation of CD changer or multimedia system control module. The two systems cannot be installed together because the installation location is the same for both.
Antenna for The Telephone, Navigation and Auxiliary Heater Remote Control -R66-
- Installed on rear of roof.
- Installed only if, in addition to the radio, a telephone or auxiliary heater is installed at the factory.
- For additional information, refer to SOUND SYSTEM AMPLIFIER .
Rear Window Antenna 1 -R130-
Right Rear Treble Speaker -R16- and Left Rear Treble Speaker -R14-
- Installed in the side trim panels at the rear on the left and right sides.
- For additional information, refer to SPEAKER OVERVIEW .
Right Rear Bass Speaker -R17- and Left Rear Bass Speaker -R15-
- Installed in the side trim panels at the rear on the left and right sides.
- For additional information, refer to SPEAKER OVERVIEW .
Digital Sound System Control Module -R12-
- Installed under left front seat.
- For additional information, refer to SOUND SYSTEM AMPLIFIER .
Right Front Bass Speaker -R23- and Left Front Bass Speaker -R21-
- Installed in the left and right doors.
- Midrange frequencies play through the bass and treble speakers.
- For additional information, refer to SPEAKER OVERVIEW .
Right Front Treble Speaker -R22- and Left Front Treble Speaker -R20-
- Installed in the left and right doors.
- For additional information, refer to SPEAKER OVERVIEW .
Left Multifunction Buttons On Steering Wheel -E440- and Right Multifunction Buttons On Steering Wheel -E441-
- Additional information, refer to MULTIFUNCTION STEERING WHEEL .
Radio/Navigation Display Control Module -J503-
- Removing and installing, refer to RADIO UNITS AND RADIO NAVIGATION .
- Overview of harness connectors, refer to CONNECTOR OVERVIEW .
- Electronic Antitheft System, refer to RNS 315 ELECTRONIC ANTI-THEFT SYSTEM .
CD Changer -R41-
- 6-disc CD changer
- Installed in the storage compartment in the center armrest.
- Additional information on, CD changer, refer to CD CHANGER .
- Optional installation of CD changer or multimedia system control module. The two systems cannot be installed together because the installation location is the same for both.
