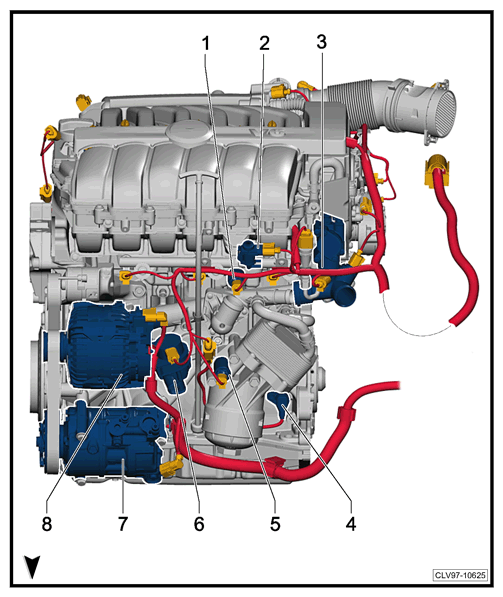

3.6L FSI CNNA/BLV, Front

  1. Knock sensor 2 -G66-
  2. Intake manifold tuning valve -N156-
  3. Fuel pressure regulator valve -N276-
  4. Engine speed sensor -G28-
  5. Oil pressure switch -F1-
  6. After-run coolant pump -V51-
  7. A/C compressor regulator valve -N280-
  8. Generator with voltage regulator -CX1-
G12752571Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
