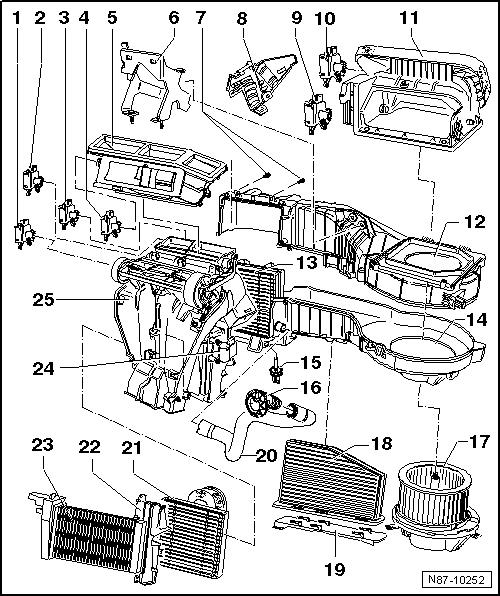

Heater And A/C Unit, CLIMATRONIC
WARNING: This page is about a different car, the 2011 Volkswagen CC, 2010 Volkswagen CC, and 2009 Volkswagen CC. However, it is still accessible from the selected car via links, so may be relevant.
- Control Motor
Passat from MY 06 Central air door motor -V70-.
Passat CC from MY 09 and CC from MY 10 front air distribution door motor -V426-.
- Check using Vehicle Diagnosis, Testing and Information System -VAS 5051B-.
- Removing and installing, refer to CENTRAL AIR DOOR MOTOR -V70- OR FRONT AIR DISTRIBUTION DOOR MOTOR -V426- .
- Replacing: perform a basic setting with Vehicle Diagnosis, Testing and Information SystemVAS 5051B. Refer to CLIMATRONIC A/C SYSTEM, CHECKING AND ADJUSTING COMPONENTS .
- Left Temperature Door Motor -V158-
- Removing and installing, refer to LEFT TEMPERATURE DOOR MOTOR -V158- .
- Defroster Door Motor -V107-
- Removing and installing, refer to DEFROSTER DOOR MOTOR -V107- .
- Indirect Ventilation Door Control Motor -V213-
- Removing and installing, refer to INDIRECT VENTILATION DOOR MOTOR -V213- .
- Intermediate Piece For Indirect Ventilation
- Bracket
- Screws
- Bolts must be unscrewed to separate air distributor and evaporator housing.
- Cover
- Recirculation Door Motor -V113-
Passat from MY 06 through calendar week 21/07.
- Beginning 05.28.07, the Recirculation Door Motor -V113- is deleted.
- Removing and installing, refer to RECIRCULATION DOOR MOTOR -V113- .
- Control Motor
Passat from MY 06 through calendar week 21/07 Air flow flap motor -V71-.
- Check using Vehicle Diagnosis, Testing and Information System -VAS 5051B-.
- Removing and installing, refer to AIR FLOW DOOR MOTOR -V71- WITH BACK PRESSURE DOOR MOTOR POSITION SENSOR -G113- .
2006 Passat from calendar week 22/07 and Passat CC from MY 2009 Fresh air/recirculating air/back pressure flap motor -V425-.
- Removing and installing, refer to AIR FLOW DOOR MOTOR -V71- WITH BACK PRESSURE DOOR MOTOR POSITION SENSOR -G113- .
- Replacing: perform Basic Setting using Vehicle Diagnostic, Testing and Information System -VAS 5051B-. Refer to CLIMATRONIC A/C SYSTEM, CHECKING AND ADJUSTING COMPONENTS .
- Housing For Air Entry
- With fresh air and recirculation door.
- With air flow door (Climatronic).
- Upper Section Of Evaporator Housing
- Disassembling and assembling evaporator housing, refer to EVAPORATOR HOUSING .
- Evaporator
- Removing and installing, refer to EVAPORATOR .
- Lower Section Of Evaporator Housing
- Disassembling and assembling evaporator housing, refer to EVAPORATOR HOUSING .
- Evaporator Vent Temperature Sensor -G263-
- Removing and installing, refer to EVAPORATOR VENT TEMPERATURE SENSOR -G263- .
- Connection For Glove Compartment Cooling
- Fresh Air Blower -V2- with Fresh Air Blower Control Module -J126-
- Cannot be replaced separately.
- The Fresh air blower control module -J126- and theFresh air blower -V2- are a single unit.
- Removing, refer to FRESH AIR BLOWER -V2- WITH FRESH AIR BLOWER CONTROL MODULE -J126- .
- Dust and Pollen Filter
- With EVAP canister.
- Removing and installing, refer to DUST AND POLLEN FILTER .
- Cover
- For dust and pollen filter.
- Coolant Hose For Glove Compartment Cooling
- Heat Exchanger
- Removing and installing, refer to HEAT EXCHANGER .
- Heater Core Trim
- Auxiliary Heater Heating Element -Z35-
- Not applicable to the US or Canada
- Right Temperature Door Motor -V159-
- Removing and installing, refer to RIGHT TEMPERATURE DOOR MOTOR -V159-, THROUGH 31 OCTOBER 2008 .
- Junction Box
