Telephone BASEPLATE On Instrument Panel

Removing

-- Switch off the ignition and all electrical consumers.

-- Remove the cellular telephone from the baseplate.

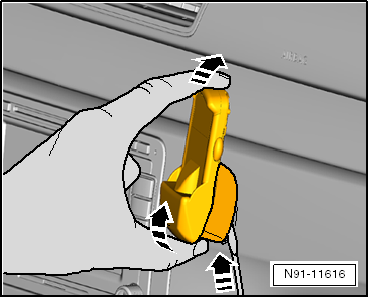

-- Carefully grasp the telephone mount and tip it by hand in the -direction of the arrow- as illustrated.

Fig 1: Carefully Grasping Telephone Mount And Tip It By Hand In -Direction Of Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

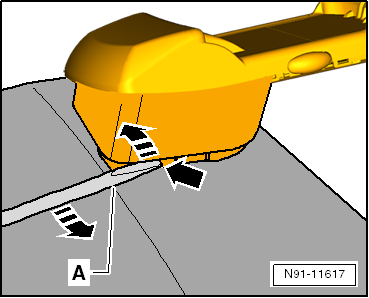

-- Insert a suitable screwdriver into the slot -A-.

-- Place a piece of cloth or felt under the blade of the screwdriver to protect the surface of the instrument panel. Pry the baseplate off the instrument panel in -direction of arrow-.

Fig 2: Inserting Suitable Screwdriver Into Slot -A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the glove compartment. Refer to Removal and Installation .

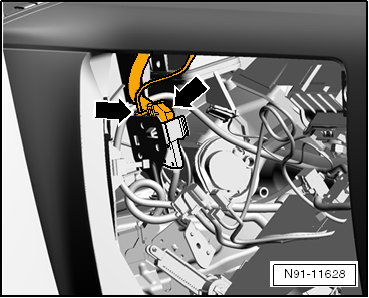

-- Disconnect the connectors -arrows- from the telephone baseplate wire connections. They can be seen at left of removed glove compartment at heating and cooling cases.

Fig 3: Disconnecting Connectors -Arrows- From Telephone Baseplate Wire Connections

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

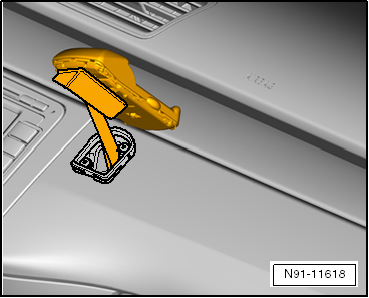

-- Remove the telephone baseplate and wire connections from the instrument panel.

Fig 4: Identifying Telephone Baseplate And Wire Connections From Instrument Panel, Removal/Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

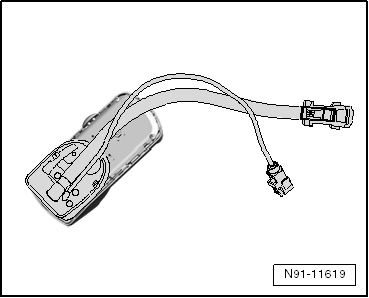

This is how the removed telephone baseplate with wiring connections looks.

Fig 5: Identifying Removed Telephone Baseplate With Wiring Connections

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal.
