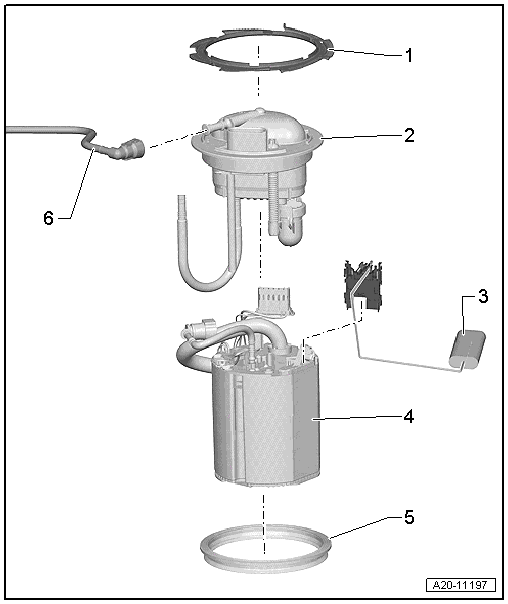

Fuel Delivery Unit/Fuel Level Sensor Overview
- Lock Ring
- 110 Nm
- Loosen using the Wrench - Fuel Sending Unit T10202
- Flange
- For the fuel delivery unit.
- May be separated from the delivery unit, refer to Separating the Flange from the Fuel Delivery Unit
- Note the installed position of the flange on the fuel tank, refer toFig 2
- With the fuel filter and the pressure relief valve, refer to FUEL FILTER
- Allocation,
- Fuel Level Sensor -G-
- Removing and installing, refer to Fuel Level Sensor G
- Fuel Delivery Unit
- Removing and installing, refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR
- With the fuel level sensor
- Checking, refer to FUEL PUMP, CHECKING
- May be separated from the flange, refer to Separating the Flange from the Fuel Delivery Unit
- Allocation
- Seal
- Always replace
- Install the seal into the fuel tank opening dry
- Lubricate with fuel only when installing the flange
- Fuel Line
- Black
- Attached to the side of the fuel tankNOTE:
The coupling must audibly engage when locking.
Pay attention to the color coding when installing, refer to Coupling Allocation !
Check the fit by pulling on it.
- The tab -2- on the flange must lie between the tabs -1 and 3- on the fuel tank.
- The -arrow- indicates the direction of travel.
