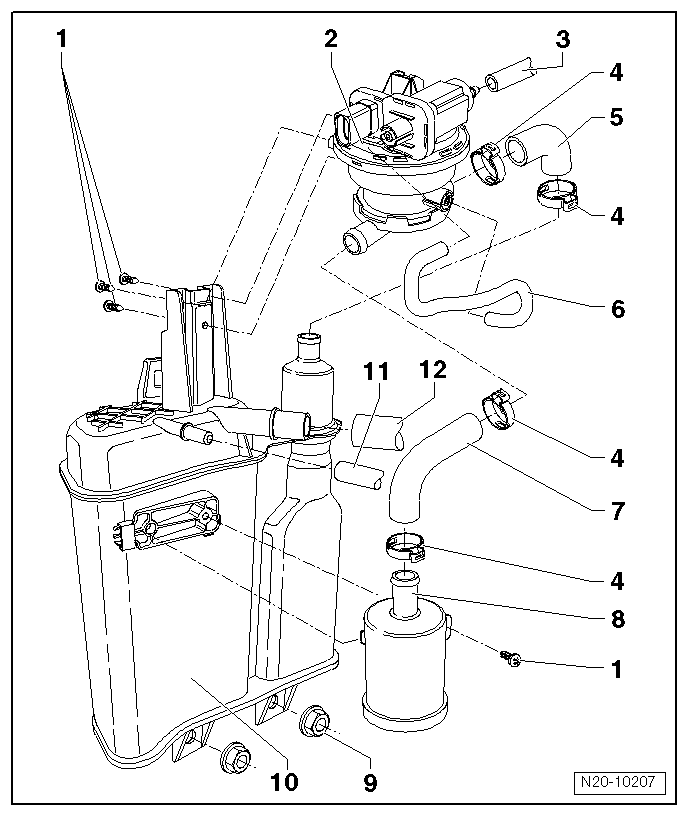

EVAP System Overview
NOTE:
The connector coupling must >>audibly<< engage when locking.
Note the color coding when installing the coupling, refer to Coupling Allocation !
Pull on the connector coupling to make sure it is secure.
Disconnect the connector couplings, refer to COUPLING, DISCONNECTING .
- Bolts
- Leak Detection Pump -V144-
- Vacuum Line
- Clamp
- Connecting Hose
- Evaporative Emission (EVAP) canister to leak detection pump
- Vacuum Hose
- Connecting Hose
- Air filter to leak detection pump
- Air Filter
- Nut
- 10 Nm
- EVAP Canister
- Installed location: Inside the right rear wheel housing
- Remove the nuts and pull the EVAP canister downward
- Vent Line
- To the EVAP canister purge regulator valve 1
- Clipped to the fuel tank
- Vent Line
- From the fuel tank
