Power Seat Control Module: Removing

-- Mount the fixture for seat repair VAS 6136 on the engine and transmission holder VAS 6095.

-- Remove the seat. Refer to FRONT SEAT .

-- Attach the seat to the fixture for seat repair VAS 6136.

-- Pull side tabs outward -arrows- and remove control module -1- from mounts.

-- Disconnect all wiring harnesses from control module.

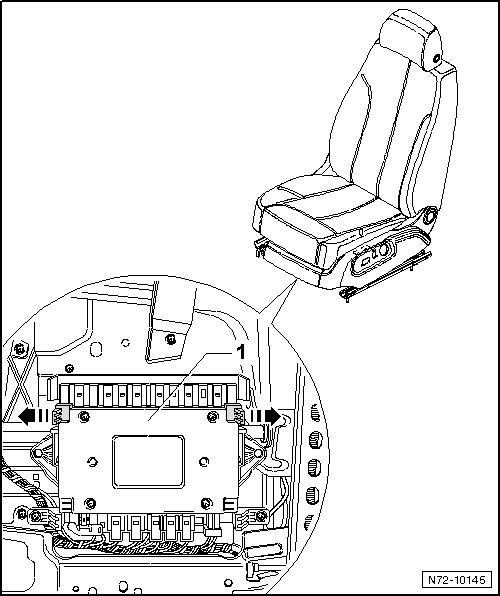

Fig 1: Identifying Power Seat Control Module Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
