Vehicle Lift Mode, Turning On And Off Level Control System

Before vehicle is raised, level control system must be switched off.

In vehicle lift mode, level control system is switched off, in order to avoid an adjusting with set vehicle hoist or trolley jack.

Vehicle Lift Mode, Activating

-- Switch on the electronic parking brake.

-- Switch on the ignition but no NOT start the engine.

-- Push the LOCK  button in the center console for five seconds.

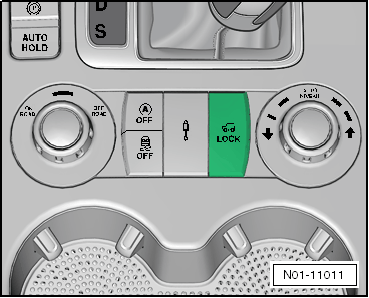

Fig 1: Identifying Lock Button
GWWN01-11011Courtesy of AUDI OF AMERICA, LLC

The vehicle lift mode is displayed in the instrument cluster and the indicator lamp LOCK  blinks.

Vehicle Lift Mode, Turning Off

-- Push the LOCK  button until the indicator lamp in the instrument cluster turns off or drive faster than 5 km/h.
