Engine Speed Sensor -G28-, Removing And Installing: Installing

-- Insert the Engine Speed Sensor -G28- from below and tighten.

-- Route the Engine Speed Sensor -G28- cable upward through the opening in the oil filter housing -arrow-.

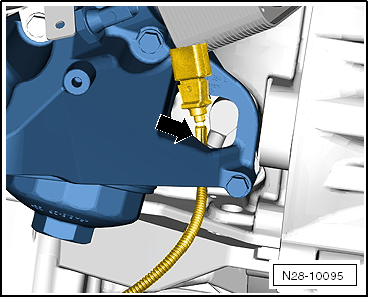

Fig 1: Identifying Opening In Oil Filter Housing -Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Assembly is performed in reverse order.
