Alignment Screen (HID)

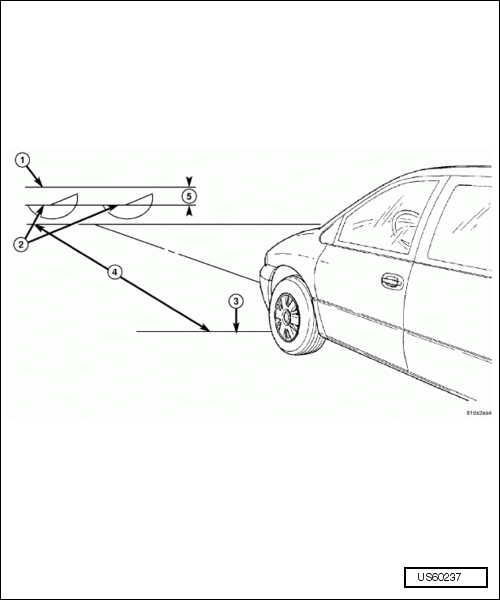

Fig 1: Identifying Alignment Screen (HID)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position vehicle on a level surface perpendicular to a flat wall 7.62 meters (25 ft.) away from front of headlamp lens (4).

-- If necessary, tape a line on the floor 7.62 meters (25 ft.) away from and parallel to the wall (3).

-- Rock vehicle side-to-side three times and allow suspension to stabilize.

-- Jounce front suspension three times by pushing downward on front bumper and releasing.

-- Measure the distance from the center of headlamp lens to the floor. This is the axis of reference point and there will be a visible mark in the center of the lens. Transfer measurement to the alignment screen with tape (1). Use this line for up/down adjustment reference.
