Left VVT Solenoid: Installing

-- Install the variable valve timing solenoid seals (1). The seals can be reused if not damaged.

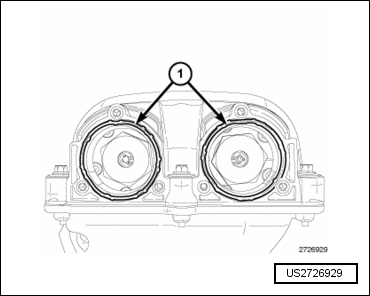

Fig 1: Identifying Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Refer to the markings made at disassembly and install the intake variable valve timing solenoid (4) and the exhaust variable valve timing solenoid (2) in their original locations.

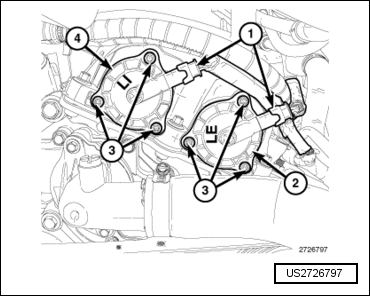

Fig 2: Identifying Valve Timizng Solenoids

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the variable valve timing solenoid mounting bolts (3) and tighten to 4 Nm (35 in. lbs.).

-- Connect the electrical connector (1) to the variable valve timing solenoid.

-- Connect the negative battery cable. Refer to Battery, Disconnecting And Connecting .
