2.5L 4V Fusion/Milan/MKZ Hybrid: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, 2011 Ford Fusion, 2010 Mercury Milan, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

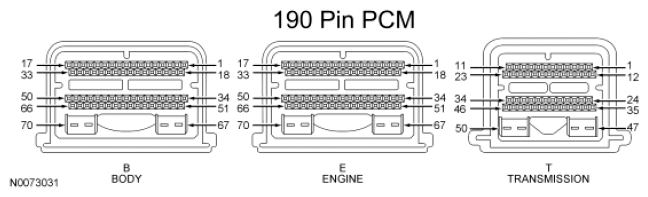

Fig 1: 190 Pin PCM Harness Connectors - 4V Fusion/Milan/MKZ Hybrid
G07432004Courtesy of FORD MOTOR CO.
