Engine Control Module, With Protective Housing: Removing

-- Turn off the ignition.

-- Remove the battery. Refer to Removal and Installation .

-- Remove the E-box cover inside the engine compartment -arrows-.

Fig 1: Identifying Engine Control Module (E-Box) Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

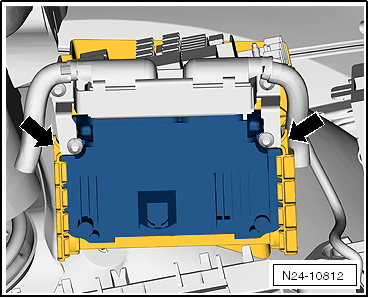

-- Free up the wiring harness and pull the Engine Control Module (ECM) upward out of its mount. Push the locking mechanism -arrows- to the side.

Fig 2: Locating Locking Mechanisms

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

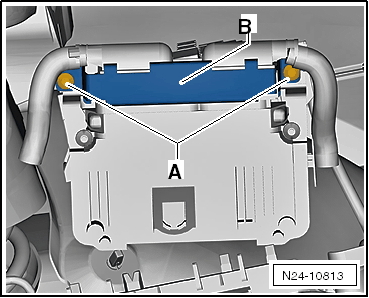

-- Remove the bolts -A-. Push the wiring harness as far as possible to the side. Remove the locking plate -B-.

Fig 3: Locating Wiring Harness And Locking Mechanism

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unlock the connector and pull it off the ECM.
