Transmission Replacement Tip (CTT 37-13-01)
Publication date: 2014-03-06Reference number: CTT 37-13-01
TRANSMISSION REPLACEMENT TIP
TECH TIPS - CANADA
Reference Number(s): CTT 37-13-01, Date of Issue:
March 6, 2014
| VOLKSWAGEN: | 2013-2014 Jetta Hybrid |
| GROUP: | 37 - Automatic Transmission - Controls, Housing |
SERVICE INFORMATION
2013-2014 Jetta Hybrid - Transmission Replacement Tip

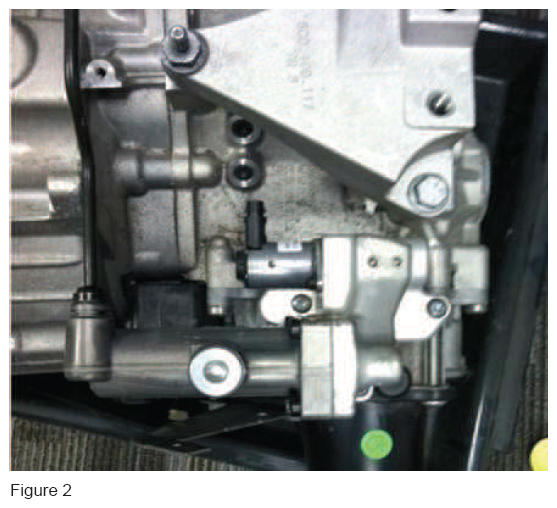

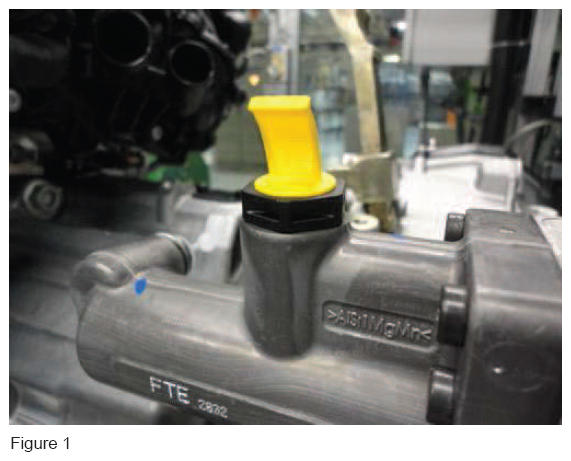

When replacing the 7 speed DSG transmission, the K0 clutch actuator may come with a yellow and black plastic plug installed, as shown in figure 1. This plug should be removed and replaced with the aluminum plug found in the original K0 clutch actuator, figure 2. The yellow and black plastic plug should be reinstalled in place of the plug on the original transmission
