Intake Manifold Runner Position Sensor, Checking: Notes
Special tools and workshop equipment required
- Multimeter.
- Wiring diagram.
Test requirements
- The Engine Control Module (ECM) - J623- fuses OK.
- Battery voltage at least 12.5 volts.
- All electrical consumers such as, lights and rear window defroster, switched off.
- Vehicles with automatic transmission, shift selector lever into position "P" or "N".
- A/C switched off.
- Ground connections between engine/transmission/chassis OK.
- Ignition switched Off.
Test procedure
-- Perform a preliminary check to verify the customers complaint. Refer to diff. of measured AIR pressure PRELIMINARY CHECK
Start diagnosis
-- Disconnect the Intake Manifold Runner Position Sensor -G336- electrical harness connector -arrow-.

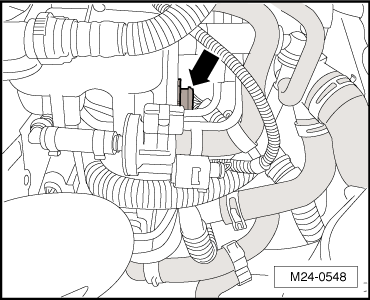

Fig 1: Identifying Intake Flap Motor V157/Intake Manifold Runner Position Sensor G336 Electrical Harness Connector
-- Switch the ignition On.
-- Using a multimeter, check the Intake Manifold Runner Position Sensor -G336- electrical harness connector terminals 1 to 3 for voltage.
Specified value: near 5 V
-- Switch ignition Off.
Continue test according to the following table:
| Value | Cause | Test |
|---|---|---|
| If the specified value was not obtained: | Open or shorted circuit | Checking wiring |
| If the specified value was obtained: | Check reference signal circuit | Check reference signal |
