Front Brakes

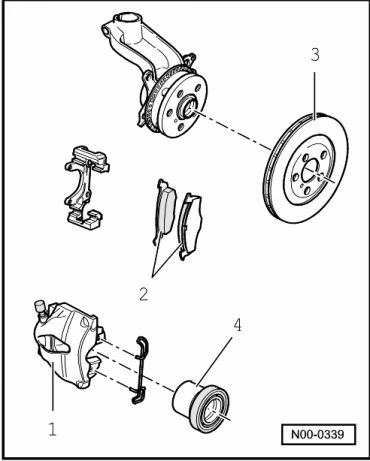

Fig 1: Exploded View Of Front Brake Calipers (FN 3)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1LH / 1ZG / 1ZM
1	Brake caliper		FN3 (16")
2	Brake pad, thickness	mm	14
2	Brake pad, wear limit without back plate	mm	2
3	Brake rotor	Diameter in mm	312
	Brake disc, thickness	mm	25
	Brake disc, wear limit	mm	22
4	Brake caliper, piston	Diameter in mm	54

Fig 2: Exploded View Of Front Brakes FNR-G

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1LK
1	Brake caliper		FNR-G (17")
2	Brake pad, thickness	mm	14
2	Brake pad, wear limit without back plate	mm	2
3	Brake rotor	Diameter in mm	345
	Brake disc, thickness	mm	30
	Brake disc, wear limit	mm	27
4	Brake caliper, piston	Diameter in mm	57

Fig 3: Front Bakes C60

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1LA / 1LB
1	Brake caliper		C60 (17")
2	Brake pad, thickness	mm	13
2	Brake pad, wear limit without back plate	mm	2
3	Brake rotor	Diameter in mm	340
	Brake disc, thickness	mm	30
	Brake disc, wear limit	mm	27
4	Brake caliper, piston	Diameter in mm	60
