Shift Mechanism, Adjusting: Procedure

-- Remove the complete air filter housing, refer to one of the following:

Gas engine, refer to Removal And Installation ,REMOVAL AND INSTALLATION .

Diesel engine, refer to REMOVAL AND INSTALLATION REMOVAL AND INSTALLATION .

-- Pull the locking mechanism on the cable retainers for the shift and selector cables all the way forward in the -direction of arrow 1- and then lock them to the left in the -direction of arrow 2-.

Fig 1: Identifying Securing Mechanism Pulled Forward Then Locked Toward Left

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The cables must slide in the cable retainer.
Transmission is in neutral.

Secure the gear shift shaft as follows:

Fig 2: Identifying Selector Shaft Pressed Down & Bracket Rotated Upward

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the gear shift shaft down in the -direction of arrow 1-.

-- While press the gear shift shaft down, rotate the locking pin -A- in the -direction of arrow 2- upward and simultaneously in the -direction of arrow 2- press it in until it engages in the gear shift shaft.

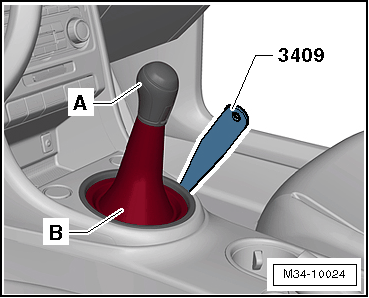

-- Unclip the boot -B- and frame off the center console using the Trim Removal Wedge 3409.

Fig 3: Identifying Shift Knob

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fold the boot and frame upward over the shift knob -A-.

-- Pull the noise insulation -1- (if equipped) slightly upward so that the Connecting Pin T10027 A can be inserted as shown below

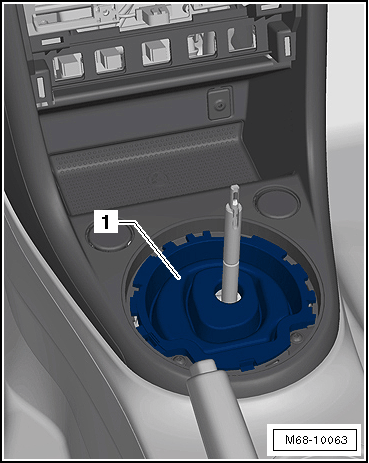

Fig 4: Identifying Noise Insulation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Secure the shift lever as follows:

-- Move the shift lever into neutral.

-- Insert the Connecting Pin T10027 A through hole -A- and into hole -B-.

Fig 5: Guiding Connecting Pin T10027 A Through Hole And Into Hole

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE: The noise insulation is not shown in the illustration.

It must be possible to move the selector and shift cables -B- in the cable retainers -A-.

Fig 6: Identifying Sequence To Install Connecting Pin T10027 A Through Hole And Into Hole
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the locking mechanism on the cable retainers for the shift and selector cables all the way to the right in the -direction of arrow 1-.

The spring will push the locking mechanism into the starting position in the -direction of arrow 2-.

-- Then, turn the locking pin -A- in the -direction of the arrow- back into it starting position.

Fig 7: Identifying Lock Bracket Positions

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The locking pin -A- must get pushed out of the transmission in the -direction of arrow 1-.

-- Pull the connecting pin out of the holes -A and B-.

Fig 8: Guiding Connecting Pin T10027 A Through Hole And Into Hole

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If equipped, install the noise insulation -1-.

Fig 9: Identifying Noise Insulation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the shift knob boot into the center console.

-- Make sure the shift lever moves easily. Refer to SHIFT MECHANISM, CHECKING .

-- Install the complete air filter housing, refer to one of the following:

Gas engine, refer to Removal And Installation ,REMOVAL AND INSTALLATION .

Diesel engine, refer to REMOVAL AND INSTALLATION REMOVAL AND INSTALLATION .
