Removal & Installation
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

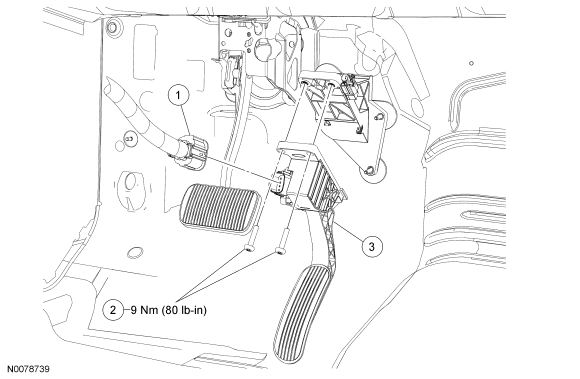

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Accelerator pedal electrical connector |
| 2 | W506015 | Accelerator pedal bolts (2 required) |
| 3 | 9N972 | Accelerator pedal |
- Disconnect the accelerator pedal sensor electrical connector.
- Remove the 2 bolts and the accelerator pedal assembly.
- To install, tighten to 9 Nm (80 lb-in).
- To install, reverse the removal procedure.
NOTE:
To prevent setting DTCs, make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal sensor electrical connectors.
