OVERVIEW - Multimedia System Control Module -J650-, UMI

The UHV-High and the MDI are housed together near the UMI, Universal Media Interface. The Cellular Telephone -R54- is connected via Bluetooth.

The functions of the UHV High and MDI are combined in one device.

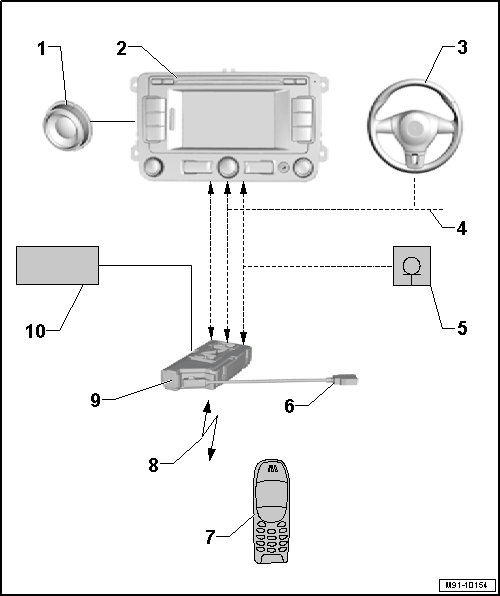

Fig 1: Multimedia System Control Module -J650- Overview (UMI)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Speaker System
2. Radio/Navigation Display Unit Control Module -J503-
3. Multifunction Steering Wheel
4. CAN Bus
5. Telephone Microphone -R38-
6. Adapter Wire
   • One for each device being connected
7. Cellular Telephone -R54-
8. Bluetooth Connection
9. Multimedia System Control Module -J650- /Telephone Transceiver -R36-
10. 54-Pin Connector -T54-

UMI Component Location

Fig 2: Locating Multimedia System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The Multimedia System Control Module -J650- /Telephone Transceiver -R36- -1- is installed inside the glove compartment.
