Camshaft Position Sensor -G40-, Removing And Installing: Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Disconnect The Connector.

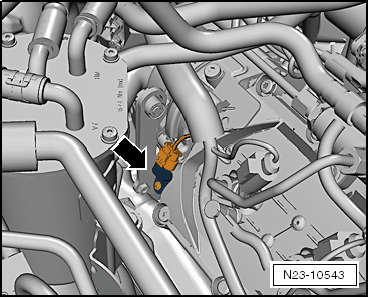

-- Remove the bolt and remove the Camshaft Position Sensor -G40- -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
