Infotainment System, How To Clear Fault Code 03276 - Check Software Version Management (GROUP 91, NO. 11-20)

Publication date: 2011-08-03
Reference number: GROUP 91, NO. 11-20
Supersedes refnos: 2025606, GROUP 91, NO. 11-03

INFOTAINMENT SYSTEM, HOW TO CLEAR FAULT CODE 03276 - CHECK SOFTWARE VERSION MANAGEMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 91, NO. 11-20 (2025606), Date of Issue: August 3, 2011

VOLKSWAGEN:	Touareg 2011-2012
GROUP:	91 - Radio, Telephone, Board Computer, Multi-Function Indicator (MFI)

Superceded Bulletin(s): GROUP 91, NO. 11-03, Date of Issue: February 24, 2011

APPLICABLE MODELS AND YEARS

Model(s)	Year	Eng. Code	Trans. Code	VIN Range From	VIN Range To
Touareg	2011 - 2012	All	All	All	All

CONDITION

91 11 20 August 3, 2011 2025606 Supersedes T.B. V911103 dated February 24, 2011 to add 2012 Touareg.

Infotainment System, How To Clear Fault Code 03276 - Check Software Version Management

After replacing an infotainment control module the entry "Check software version management" (fault code P03276) is logged.

DIAGNOSTIC TROUBLE CODES

Fault Code	Description
03276	Check software version management

DO NOT diagnose or replace components due to this fault before performing the update function as explained in this bulletin.

TECHNICAL BACKGROUND

After replacing a control module in the Infotainment System all other control modules of the system must be checked. This is in addition to the guided fault finding procedure (e.g. "Replace J794 control unit") to ensure the infotainment works correctly.

The Infotainment System includes the following control modules:

Infotainment Module - AW 5F (Located in glove box area)
Radio Module - AW 56 (Located in right rear of vehicle)
Amplifier - AW 47 (if equipped)
Multimedia Interface (MDI) - AW 0E (Located in glove box area)
Instrument Cluster - AW 17
Touch Screen - AW 5F (sub-module of 5F)

PRODUCTION SOLUTION

Not applicable.

SERVICE

PROCEDURE

IMPORTANT: VAS Tester must have an internet connection to complete the procedure.

NOTE: Prior to launching VAS-PC application and starting this procedure, confirm tester screen saver and power settings in accordance with Special Tools and Equipment - Service Information Circular # VSE-08-18. Failure to do so may result in the tester entering power save mode during data transfer, and subsequent control module failure.

When using a VAS 6150, 5051B or 5052A tester in conjunction with a VAS 5054A wireless transmitter head for a flash procedure, please connect a USB cable between the transmitter head and the tester. Failure to do so may lead to errors during the flash procedure.

Connect Midtronics InCharge 940 (INC 940) Tester/Charger to vehicle's battery if not done so already

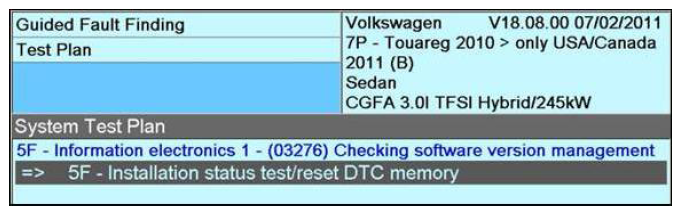

Test plan 5F - Installation status test/reset DTC memory will be shown:
Follow the test plan. When instructed, enter in code 3380
DTC 03276 will be erased once the test plan is complete

WARRANTY

Information only.

REQUIRED PARTS AND TOOLS

No Special Parts required.

TOOL INFORMATION

Tool Description	Tool No:
Midtronics Battery Tester/Charger	InCharge 940 (INC 940)
VAS Diagnostic Tool	VAS 5051B, 5052A, 6150(A) (Base CD V19.00 and Brand DVD V19.11.01 or higher)

ADDITIONAL INFORMATION

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
