Body Control Module: Locations

Control modules in passenger compartment

Comfort system central control module -J393-



Note:
• The comfort system control module J393 was discontinued from
May 2009 due to the introduction of the new vehicle electrical
system control module J519

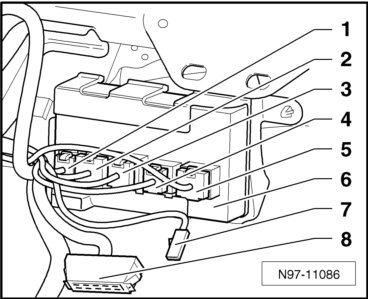

Component Location:







1 6-pin connector -T6rd- , brown
2 18-pin connector -T18kf- , brown
3 8-pin connector -T8n- , black
4 6-pin connector -T6c- , black
5 18-pin connector -T18zv- , brown
6 Comfort system central control module -J393-
7 Glove compartment lamp switch -E26-
8 10-pin connector -T10k-
