Heater and A/C Control Trim

Heater and A/C Control Trim

Removing

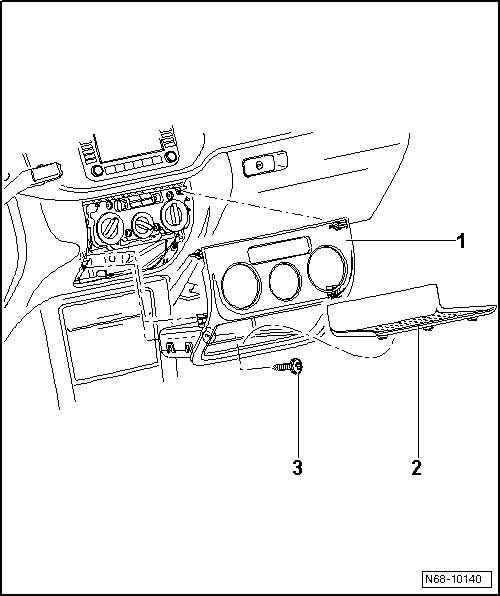

- Remove the lining mat - 2 - from the storage compartment - 1 -.

- Remove bolt - 3 - (1.5 Nm).

- Remove trim from mountings in instrument panel.






Installing

- Install in reverse order of removal.
