Heat and Fresh Air Controls

Heat and Fresh Air Controls

Removing

• The controls consist of two separable housings. Before removing controls, bring rotary buttons into the following positions:

• Heater control to "cold"

• Blower to "0"

• Air flow direction to "footwell"

- Remove the trim from the heater and A/C controls.

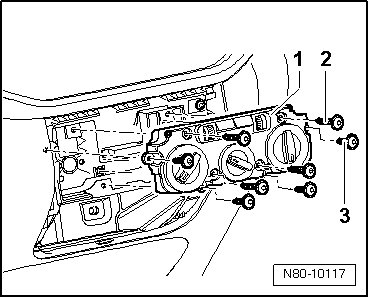

- Remove the bolts - 2 - (4.2 x 45) and - 3 - (4.2 x 16) and the controls - 1 - from the center console.

Tightening specification for the bolts - 2 - and - 3 -: 1.5 +/- 0.2 Nm.






- Release the connector - A - by pulling it in direction of arrow - 1 -.

- Press connector release - B - toward the connector - arrow 2 - and disconnect the connector - C -.

- Disconnect the connector - D -.

• Illustration shows "Climatic" version. The procedure for releasing the "Climatronic" connector is the same.

Installing

Installation is performed in reverse order of removal, make sure when doing so that the rotary buttons have the same position as when removing.
