Air Distribution Door Adjusting Unit

Air Distribution Door Adjusting Unit

Removing

- Remove the trim piece in the driver side footwell.






- Remove the left footwell vent. Refer to => [ Left Footwell Vent ] Left Footwell Vent.

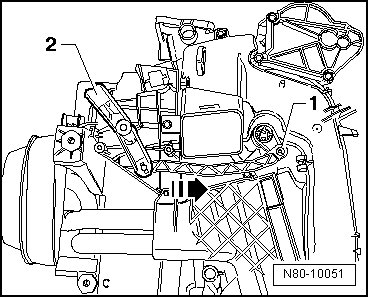

- Unclip cable at adjusting unit for temperature door - 2 -.

- Disengage locking mechanism - 1 - and press adjusting unit for temperature door in - direction of arrow - until it reaches stop.

- Remove adjusting unit for temperature door.

Installing

Install in reverse order of removal.

• After installing, function of temperature door must be checked. Temperature knob on hot air and fresh air controls must be able to moved easily and without catching from "cold" position to "warm" position.
