Side Impact Sensor - First Row, B-Pillar: Notes

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: RH shown, LH similar.

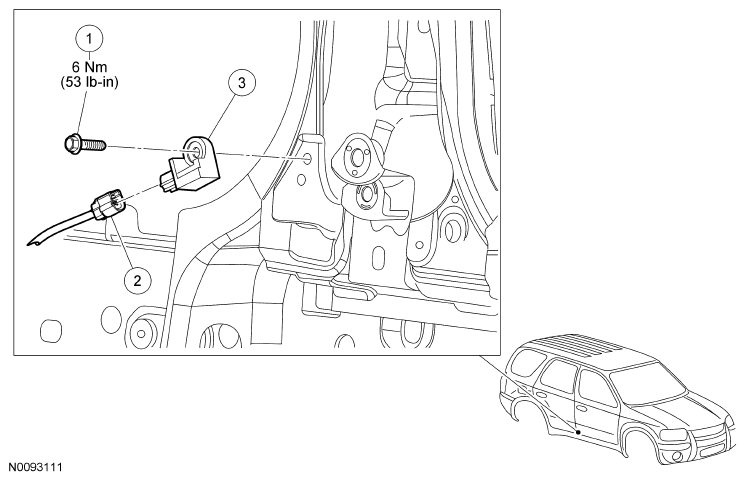

Fig 1: Side Impact Sensor - First Row (B-Pillar) With Torque Specifications
G06100253Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W713759 Side impact sensor bolt
2 - Electrical connector (part of 14A005)
3 14B345 Side impact sensor
