Shock Absorber and Spring Assembly: Material
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
ITEM SPECIFICATION TABLE
| Item | Specification |
|---|---|
| Silicone Brake Caliper Grease and Dielectric Compound XG-3-A | ESE-M1C171-A |

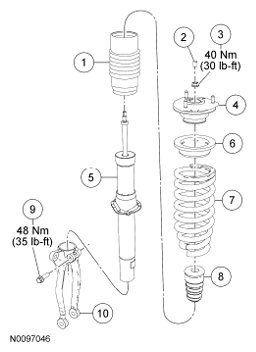

Fig 1: Identifying Shock Absorber & Spring Assembly Replacement Components With Torque Specifications
ITEM DESCRIPTION TABLE
| Item | Part Number | Description |
|---|---|---|
| 1 | 3C239 | Dust boot |
| 2 | 18A179 | Shock absorber rod protective cap |
| 3 | 18A161 | Shock absorber rod nut |
| 4 | 18183 | Shock absorber upper mount |
| 5 | 18184 | Shock absorber and lower mount assembly |
| 6 | 5793 | Spring upper seat |
| 7 | 5310 | Spring |
| 8 | 18198 | Jounce bumper |
| 9 | W302119 | Shock absorber-to-damper fork bolt |
| 10 | 3463 LH/3462 RH | Damper fork |
