Test Step 3 - Left Pinch Sensor Open

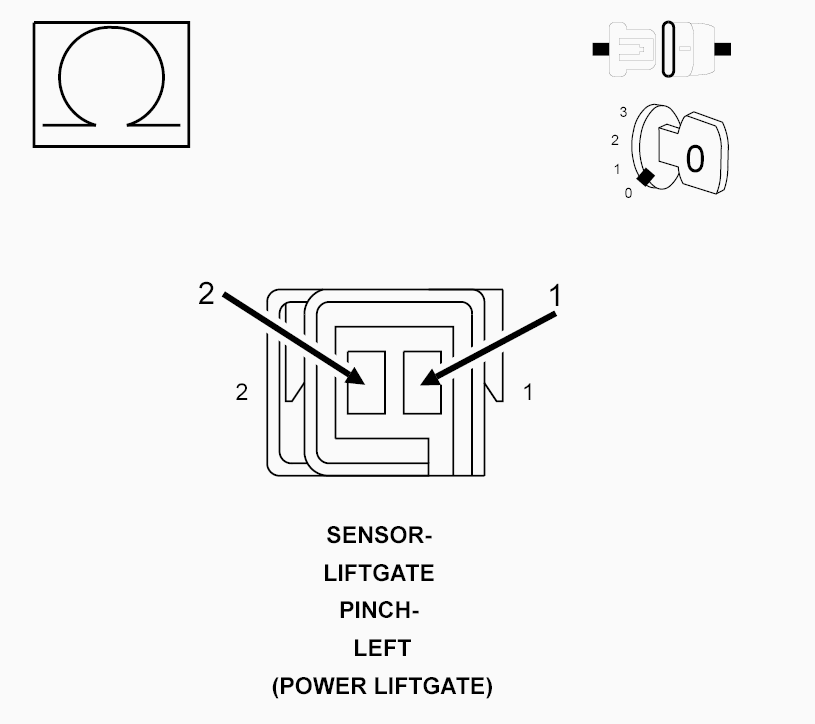

- Measure the resistance of the left pinch sensor in the component side connector.
NOTE:
the graphic shows the harness side - component side is the mate connector of the pinch sensor.
Is the resistance between 9k and 11k ohms?
Yes
- Go to Test Step 4 Test Step 4 - Left Pinch Sensor Signal Circuit Open
No
- Replace the left pinch sensor. Refer to POWER LIFTGATE PINCH SENSOR .
- Perform the Body Verification Test. Refer to BODY VERIFICATION TEST .
