Electrical Sensor Dynamics: Installation

NOTE:

When installed, arrow on dynamics sensor housing must point towards front of vehicle.

-- Position the dynamics sensor (2) on the mounting bracket (4) with the arrow pointing to the front of the vehicle and the connector facing the passenger side of the vehicle.

-- Install the two mounting screws (1). Tighten the screws to 9 Nm (80 in. lbs.).

-- Connect the wiring harness connector (3) to the dynamics sensor (1).

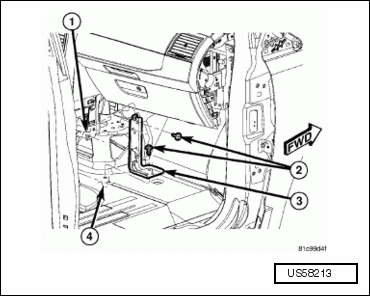

Fig 1: Identifying Dynamics Sensor Bracket, Connector And Screws

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the right intermediate floor distribution duct (2).

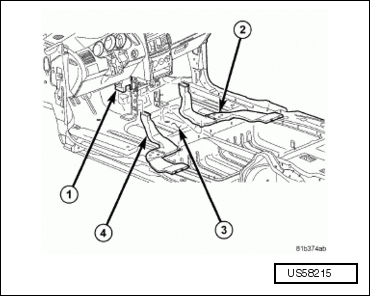

Fig 2: Identifying Right Intermediate Floor Distribution Duct

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the instrument panel center support brackets (3) and mounting screws (2). There is one bracket on each side of the tunnel structure.

Fig 3: Identifying Instrument Panel Center Support Brackets And Fasteners

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Reinstall the carpet onto the front floor pan and under the instrument panel. Refer to Removal and Installation .

-- Install the instrument panel center stack console. Refer to Removal and Installation .

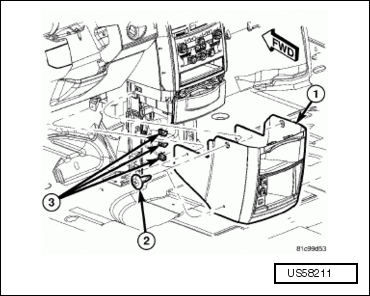

Fig 4: Identifying Center Stack Console And Fasteners

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the battery negative cable to the battery post.

-- Perform the Diagnostic Verification Test and clear any faults. Refer to BRAKE SYSTEM DTC BASED DIAGNOSTICS (B1783-01 TO U140E-00)BRAKE SYSTEM DTC BASED DIAGNOSTICS (C0021 - U1503) .
