Transmission Range Sensor: Removing

Fig 1: Identifying Park Rod Assembly And Transmission Range Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the valve body. Refer to Removal and Installation .

-- Remove the park rod assembly (2) from the transmission range sensor (1).

Fig 2: Identifying Set Screw, Tool And Manual Lever

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the set screw (1), using tool (3) at the manual lever (2).

Fig 3: Identifying Roll Pin, Transmission Range Sensor (TRS) And Pin Punch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the roll pin (3) at the Transmission Range Sensor (TRS) (1) using a pin punch (2).

Fig 4: Identifying Manual Lever And Bushing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the manual lever (2) from case and inspect the bushing (3).

Fig 5: Identifying TRS, Roll Pin And Pin Punch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the TRS (1 and 2) from the case.

-- Remove the manual lever seal (2).

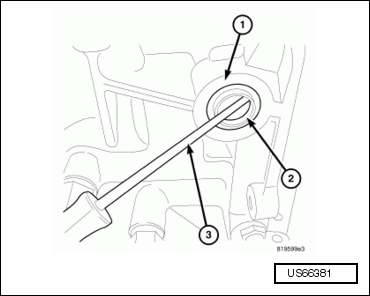

Fig 6: Identifying Manual Lever Oil Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Using a small flat bladed screwdriver (3) Remove the manual lever oil seal (2) from the case (1).
