Shift Cable: Installing

NOTE: Ensure the rubber grommet in the bulkhead is fully seated to prevent water leaking into the passenger compartment.

-- Install the shift cable (2) through the bulkhead (1) from the passenger compartment.

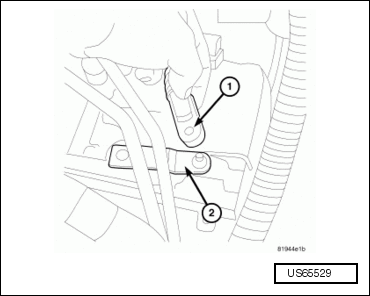

Fig 1: Identifying Shift Cable

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Seat the rubber grommet in the bulkhead.

-- Connect the shift cable to the bracket.

-- Connect the shift cable (1) to the transmission manual valve lever (2).

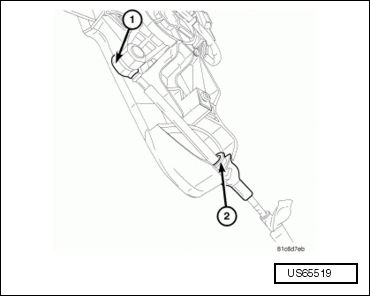

Fig 2: Identifying Gearshift Cable And Transmission Manual Valve Lever

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE: Ensure that the lock tab on the shift cable (2) is seated after the cable in installed to the shift lever housing.

-- Install the cable to the shift lever (1 and 2).

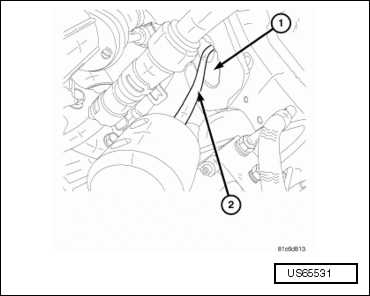

Fig 3: Identifying Shift Cable

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the instrument panel knee bolster. Refer to Removal and Installation .
