Global Positioning System (GPS) Antenna: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

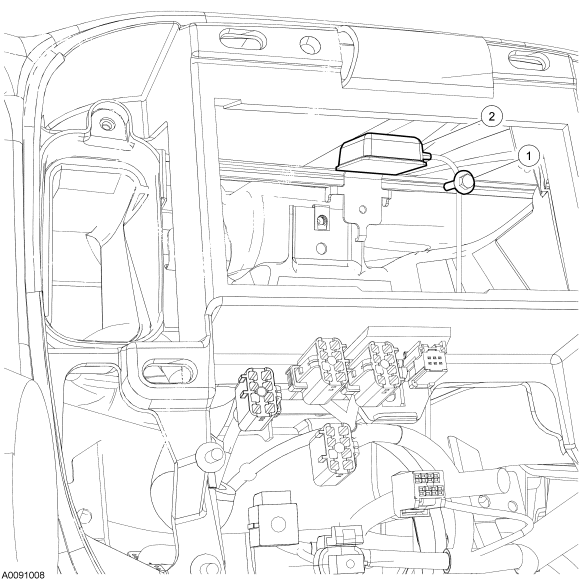

Fig 1: Exploded View Of Global Positioning System (GPS) Antenna
GF0025950Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705314-S GPS antenna bolt
2 18A984 GPS antenna
