Side Impact Sensor - First Row, B-Pillar: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front safety belt retractor anchor bolt and belt are removed for clarity.

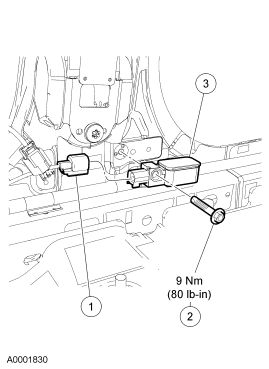

Fig 1: Exploded View Of B-Pillar First Row Side Impact Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Side impact sensor connector (part of 14405)
2	710361	Side impact sensor bolt
3	14B345	Side impact sensor
