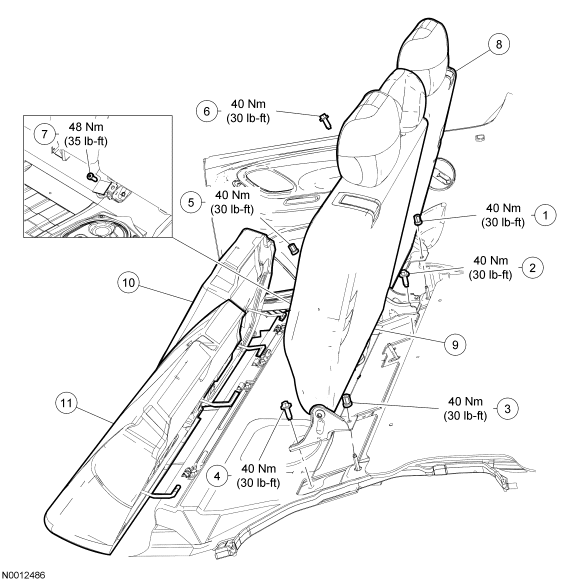

Seat - Exploded View, Rear
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W703424-S | Rear seat backrest bracket nut |
| 2 | W707122-S | Rear seat backrest bracket bolt |
| 3 | W703424-S | Rear seat backrest bracket nut |
| 4 | W707122-S | Rear seat backrest bracket bolt |
| 5 | W703424-S | Rear seat backrest bracket nut |
| 6 | W707122-S | Rear seat backrest bracket bolt |
| 7 | N807750-S190 | Rear seat safety belt anchor bolt |
| 8 | 7860032-D | Rear seat backrest (40 percent) |
| 9 | 7860033-D | Rear seat backrest (60 percent) |
| 10 | 7863840-A | Rear seat cushion (40 percent) |
| 11 | 7860081-D | Rear seat cushion (60 percent) |
- For additional information, refer to the following procedures.
