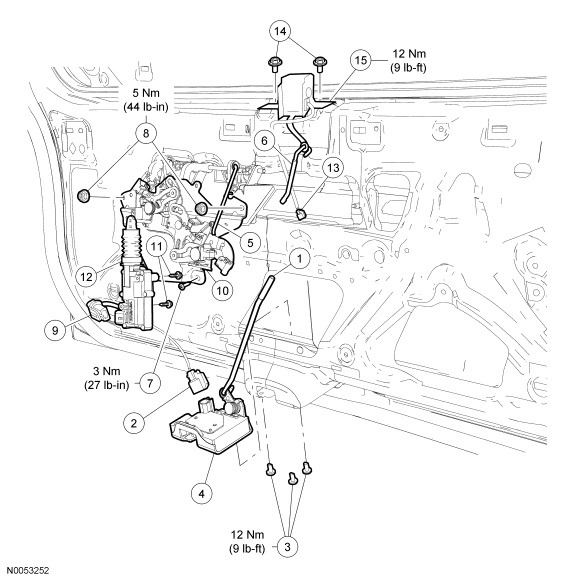

Liftgate Handle, Lock and Latch - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Liftgate latch actuating rod (part of 7843102) |
| 2 | 14A583 | Liftgate latch electrical connector |
| 3 | W707257-S439 | Liftgate latch bolts (3 required) |
| 4 | 7843102 | Liftgate latch |
| 5 | - | Liftgate handle actuating rod |
| 6 | - | Liftgate window latch actuating rod |
| 7 | W505002-S424 | Liftgate latch remote control screw |
| 8 | W707137-S441 | Liftgate latch remote control nuts (2 required) |
| 9 | 14A583 | Liftgate latch actuator electrical connector |
| 10 | 7843400 | Liftgate latch remote control assembly |
| 11 | - | Liftgate latch actuator screws (2 required) |
| 12 | 78404C10 | Liftgate latch actuator |
| 13 | - | Liftgate window latch electrical connector (part of 14A583) |
| 14 | W705830-S901 | Liftgate window latch bolts (2 required) |
| 15 | - | Liftgate window latch |
- For additional information, refer to the following procedures.
