Accelerator Cable - 2.3L: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

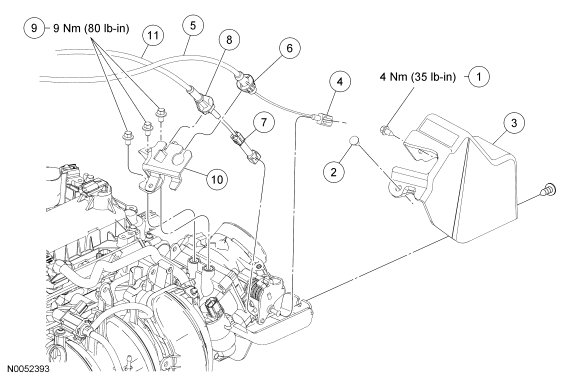

Fig 1: Exploded View Of Accelerator Cable - 2.3L (1 Of 2 - With Torque Specifications)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W702251	Accelerator control cover shield screw
2	-	Pin-type retainer (part of 9E766) (2 required)
3	9E766	Accelerator control cover shield
4	-	Accelerator cable-to-throttle body (part of 9A758)
5	9A758	Accelerator cable
6	-	Accelerator cable-to-bracket grommet (part of 9A758)
7	-	Speed control cable-to-throttle body (part of 9A825)
8	-	Speed control cable-to-bracket grommet (part of 9A825)
9	W500210	Accelerator cable bracket bolts (3 required)
10	9677	Accelerator cable bracket
11	9A825	Speed control cable

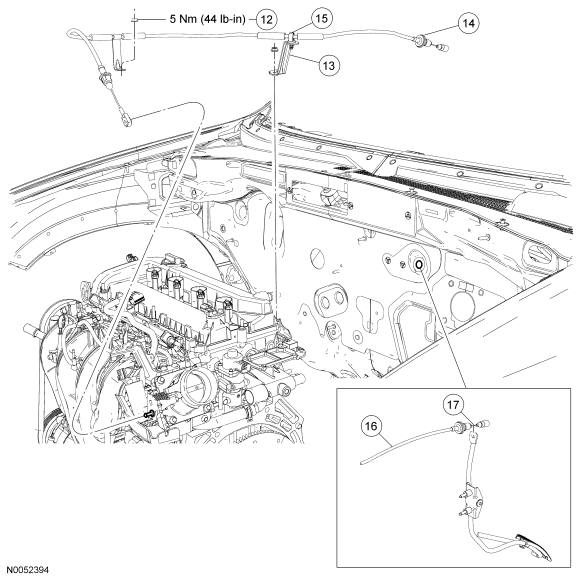

Fig 2: Exploded View Of Accelerator Cable - 2.3L (2 Of 2 - With Torque Specifications)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
12	W520412	Accelerator cable bracket nut (2 required)
13	9E728	Accelerator cable bracket
14	-	Accelerator cable grommet (part of 9A758)
15	-	Accelerator cable pushpin retainer (part of 9A758)
16	9A758	Accelerator cable
17	-	Accelerator cable to pedal (part of 9A758)
