Front Suspension - Exploded View

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Exploded View Of Front Suspension With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705967	Wheel hub nut
2	-	Cotter pin
3	W705833	Tie-rod end-to-knuckle nut
4	W520213	Lower ball joint pinch bolt nut
5	W709618	Lower ball joint pinch bolt
6	W711999	Strut-to-knuckle nuts (2 required)
7	W711998	Strut-to-knuckle bolts (2 required)
8	3K171 LH/ 3K170 RH	Wheel knuckle
9	W500749	Front lower arm bolt
10	W708549	Rear lower arm bolt
11	3A424 LH/ 3A423 RH	Lower arm

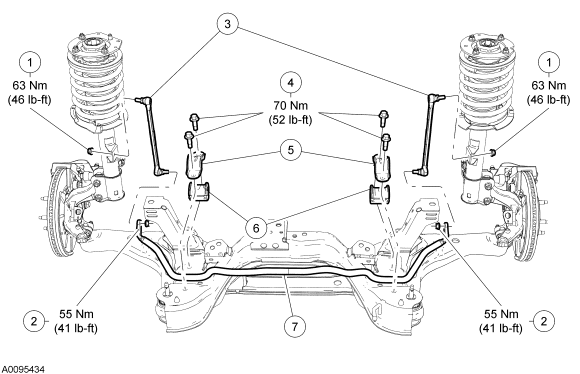

Fig 2: Exploded View Of Stabilizer Bar With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W708990	Stabilizer bar link nuts (upper) (2 required)
2	W708990	Stabilizer bar link nuts (lower) (2 required)
3	5K483	Stabilizer bar links (2 required)
4	W506441	Stabilizer bar bushing bracket bolts (4 required)
5	5486	Stabilizer bar bushing bracket (2 required)
6	5484	Stabilizer bar bushings (2 required)
7	5494	Stabilizer bar

For additional information, refer to the following procedures.
