Ignition Lock Cylinder: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Multi-Purpose Grease Spray XL-5 |
ESB-M1C93-B |

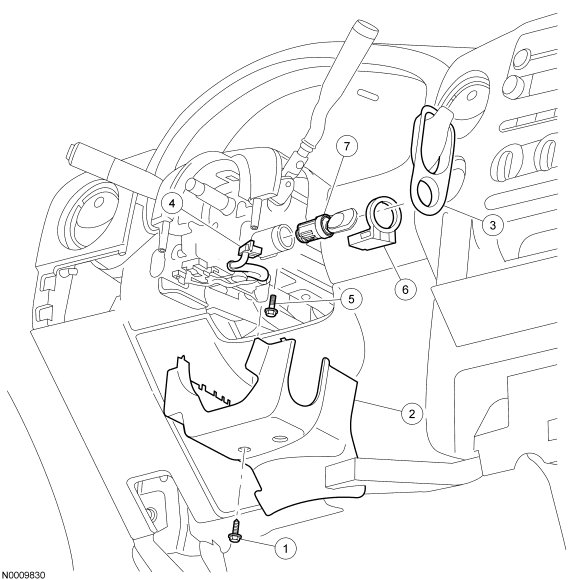

| Item | Part Number | Description |
|---|---|---|
| 1 | W506824 | Steering column shroud bolt |
| 2 | 3530 | Steering column shroud (lower) |
| 3 | - | Ignition lock cylinder cover (part of 7210) |
| 4 | - | Passive anti-theft system (PATS) transceiver electrical connector (part of 14401) |
| 5 | 390345 | PATS transceiver screw |
| 6 | 15607 | PATS transceiver |
| 7 | 11582 | Ignition lock cylinder |
