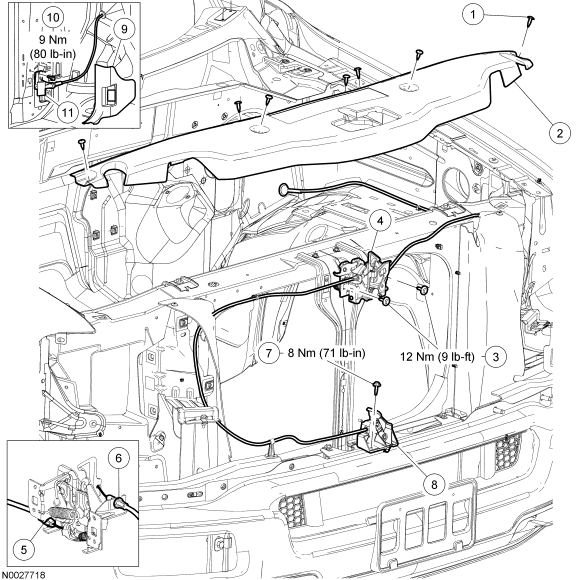

Hood Latch and Components - Exploded View
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W706350 | Radiator upper sight shield pin-type retainers (7 required) |
| 2 | 8C299 | Radiator upper sight shield |
| 3 | N808727 | Hood latch bolts (2 required) |
| 4 | 16700 | Hood latch |
| 5 | 16B975 | Primary hood latch release cable |
| 6 | - | Secondary hood latch release cable (part of 16916) |
| 7 | W505425-S439 | Secondary hood latch release cable screw |
| 8 | 16916 | Secondary hood latch release |
| 9 | 1502345 | A-pillar lower trim panel |
| 10 | N805375 | Primary hood latch release cable screw |
| 11 | 16B975 | Primary hood latch release cable |
- For additional information, refer to the procedures in this article.
