Console - Floor: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

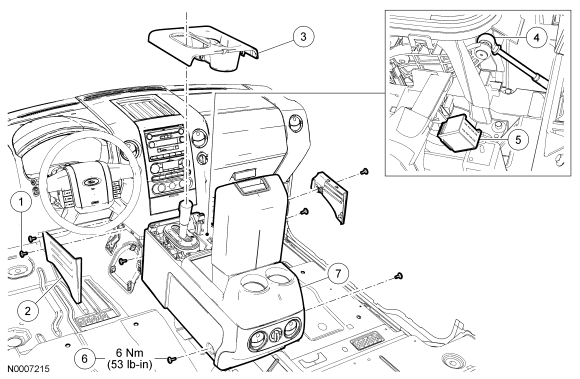

| Item |
Part Number |
Description |
| 1 |
N811040 |
Push pin (3 required) |
| 2 |
1504609 LH/ 1504608 RH |
Floor trim panel (2 required) |
| 3 |
15011202 |
Shifter trim panel |
| 4 |
7E395 |
Shifter cable |
| 5 |
14401 |
Electrical connector |
| 6 |
W704734-S424 |
Floor console bolt (4 required) |
| 7 |
15011202 |
Floor console |
