Side Lamp Assembly - Outside Rear View Mirror: Notes

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

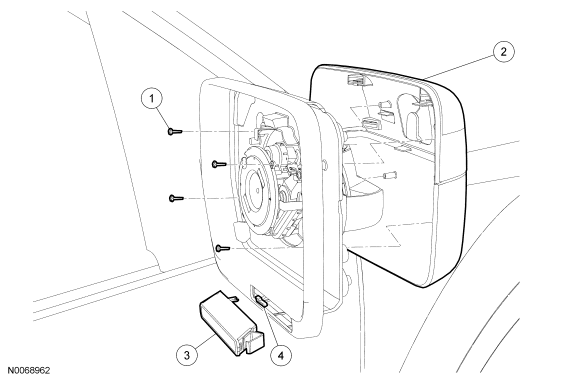

Fig 1: Exploded View Of Side Lamp Assembly Components (Outside Rear View Mirror)(Aero-Styled Mirror)
GF0004669Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Exterior mirror cover screws (4 required) (part of 17683/17682)
2 17682 Exterior mirror cover
3 13B374 Trailer tow turn lamp
4 - Trailer tow turn lamp electrical connector (part of 17683/17682)

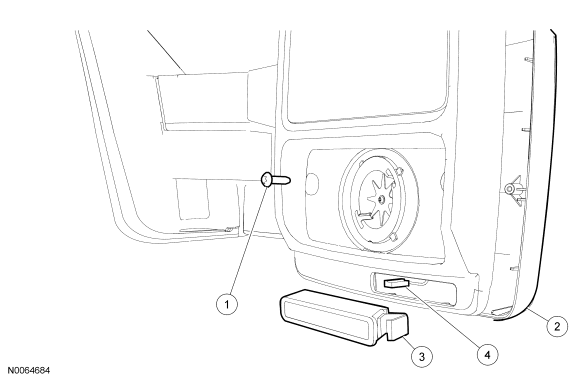

Fig 2: Exploded View Of Side Lamp Assembly Components (Outside Rear View Mirror)(Trailer Tow Mirror)
GF0004670Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Exterior mirror cover screw (part of 17683/17682)
2 17682 Exterior mirror cover
3 13B374 Trailer tow turn lamp
4 - Trailer tow turn lamp electrical connector (part of 17683/17682)
